Radio Sets - index & lists

On this page I've summarized all radio sets known to me, from the "old family" style, using components like the RT-66/GRC, RT-67/GRC, RT-68/GRC and RT-70/GRC. In some cases I had the manual to compile the lists from, in other cases I worked from the diagrams showing all sets found in a lot of manuals from that era. Actually, later manuals show even more sets then the early series - the VRC-20, VRC-21 and VRC-22 only get mentioned in the more recent documentation as I only realised recently, as they are only a somewhat stripped version of the original GRC-3, GRC-5 and GRC-7, without the RT-70/GRC. Also, these do not show the GRA-6 Remote Control Group to be part of the installation, but on the other hand, they do mention the Installation Kit with each and every set, unlike before. They have been added now...
What's more, on a second page - with many links to this one and vice versa - I am documenting all those parts. So follow the links if you want to know more about what these sets encompassed and how they were put together.

Throughout the whole page I've dropped the leading "AN/" from the nomenclature, in order to keep it readable. However, the official name for the first set would be: AN/GRC-3. This holds true for nearly all major parts in this radio family. Also, I've tried to use the language of the period these radios belong to. So you will find Interphone, rather then Intercom.

Armoured, Artillery and Infantry used radio sets that differed only in their frequencies:
Armoured 20 to 28 MHz
Artillery 27 to 39 MHz
Infantry 38 to 55 MHz.
Note the overlaps, allowing the different systems to intercommunicate. However, if infantry wanted to talk to armoured using these band plans, they had a problem...
Technically this usage of different bands was solved by designing three variations of the two major components, the Main Receiver Transmitter and the Auxiliary Receiver. The VRC-8 and the VRC-9 for instance are identical, but for the Main Receiver Transmitter.
If you compare the GRC-3 with the GRC-4 - both Armoured, so utilizing the same major components - it turns out the only difference is that the latter does not have a Auxiliary Receiver. All other components are the same, including to the mounting.
Basically, with this approach there was a great number of sets - but a limited number of parts.

The RT-70/GRC by the way is a much smaller transceiver, included in a number of these sets, solving the communications problems of Armoured and Infantry - it was specifically meant to work within the Infantry Band.

Portable sets like PRC-6 will be added at a later time. All markings in red are reminders to myself!

Main Receiver Transmitter, Auxiliary Receiver Transmitter, Auxiliary Receiver, Interphone
GRC-3
: Armoured, Ground or General, Radio, Communication
GRC-5: Artillery, Ground or General, Radio, Communications
GRC-7: Infantry, Ground or General, Radio, Communications
Main Receiver Transmitter, Auxiliary Receiver Transmitter, Interphone
GRC-4: Armoured, Ground or General, Radio, Communication
GRC-6: Artillery, Ground or General, Radio, Communications
GRC-8: Infantry, Ground or General, Radio, Communications
Double Main Receiver Transmitter
VRQ-1: Armoured, Vehicular, Radio, Special or Combination of Purposes
VRQ-2: Artillery, Vehicular, Radio, Special or Combination of Purposes
VRQ-3: Infantry, Vehicular, Radio, Special or Combination of Purposes
Main Receiver Transmitter
VRC-8: Armoured, Vehicular, Radio, Communications
VRC-9: Artillery, Vehicular, Radio, Communications
VRC-10: Infantry, Vehicular, Radio, Communications
Main Receiver Transmitter, Interphone
VRC-13: Armoured, Vehicular, Radio, Communications
VRC-14: Artillery, Vehicular, Radio, Communications
VRC-15: Infantry, Vehicular, Radio, Communications
Main Receiver Transmitter, Auxiliary Receiver

VRC-16: Armoured, Vehicular, Radio, Communications
VRC-17: Artillery, Vehicular, Radio, Communications
VRC-18: Infantry, Vehicular, Radio, Communications
Main Receiver Transmitter, Auxiliary Receiver, Interphone
VRC-20
: Armoured, Ground or General, Radio, Communication
VRC-21: Artillery, Ground or General, Radio, Communications
VRC-22: Infantry, Ground or General, Radio, Communications
Auxiliary Receiver Transmitter, Interphone
VRC-7: Vehicular, Radio, Communications
Interphone

UIC-1: General, Utility, Interphone and PA, Communications
Auxiliary Receiver Transmitter
PRC-16: Portable, Radio, Communications
Modification Kit MX 898/GR

MX 898/GR: Modification Kit

Radio sets - detailed lists

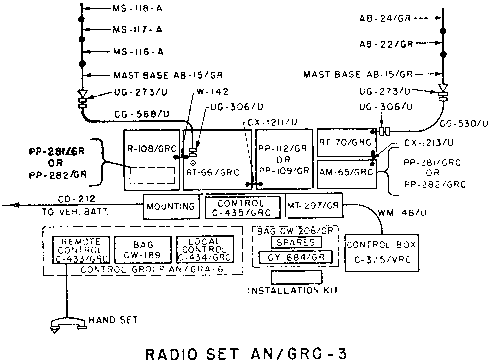

GRC-3

Armoured, Ground or General, Radio, Communication

Spares (included in list above): Mast Sections MS-116-A, MS-117-A, MS-118-A, AB-24/GR, AB-22/GR

Standard accessories: H33/PT Handset

Other accessories: GRA-6 Remote Control Unit

Shipping: Unknown

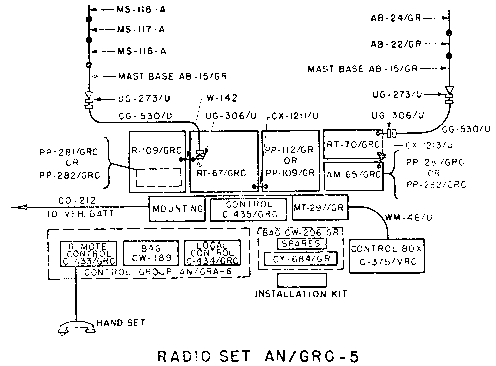

GRC-5

Artillery, Ground or General, Radio, Communication

Spares (included in list above): Mast Sections MS-116-A, MS-117-A, MS-118-A, AB-24/GR, AB-22/GR

Standard accessories: H33/PT Handset

Other accessories: GRA-6 Remote Control Unit

Shipping: Unknown

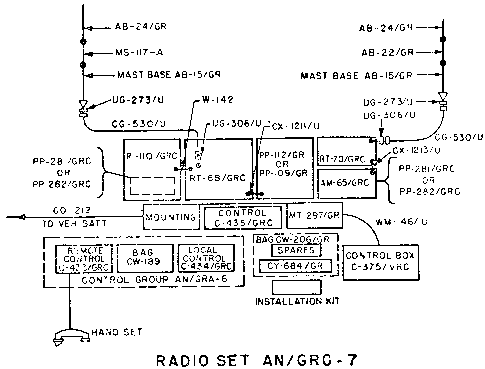

GRC-7

Infantry, Ground or General, Radio, Communication

Spares (included in list above): Mast Sections MS-117-A, AB-24/GR (2 each), AB-22/GR

Standard accessories: H33/PT Handset

Other accessories: GRA-6 Remote Control Unit

Shipping: Unknown

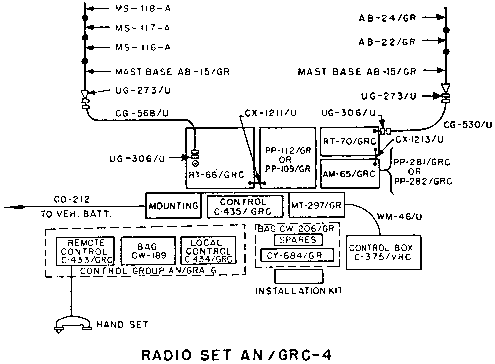

GRC-4

Armoured, Ground or General, Radio, Communication

Spares (included in list above): Mast Sections MS-116-A, MS-117-A, MS-118-A, AB-24/GR, AB-22/GR

Standard accessories: H33/PT Handset

Other accessories: GRA-6 Remote Control Unit

Shipping: Unknown

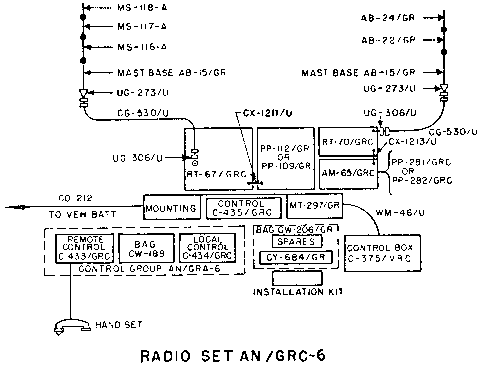

GRC-6

Artillery, Ground or General, Radio, Communications

Spares (included in list above): Mast Sections MS-116-A, MS-117-A, MS-118-A, AB-24/GR, AB-22/GR

Standard accessories: H33/PT Handset

Other accessories: GRA-6 Remote Control Unit

Shipping: Unknown

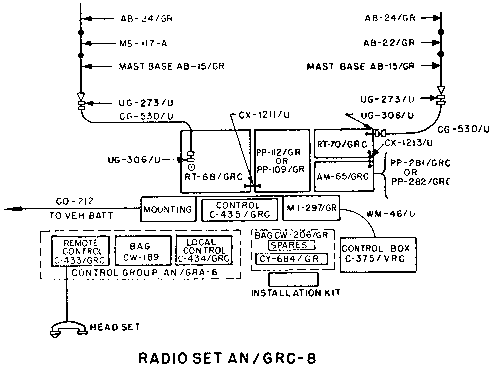

GRC-8

Infantry, Ground or General, Radio, Communications

Spares (included in list above): Mast Sections MS-117-A, AB-24/GR (2 each), AB-22/GR

Standard accessories: H33/PT Handset

Other accessories: GRA-6 Remote Control Unit

Shipping: Unknown

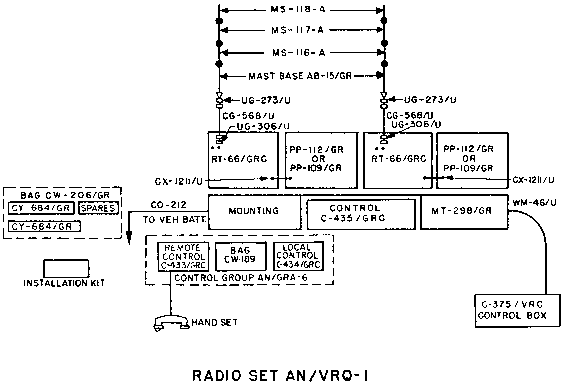

VRQ-1

Armoured, Vehicular, Radio, Special or Combination of Purposes

Spares (included in list above): Mast Sections MS-116-A (2 each), MS-117-A (2 each),  MS-118-A (2 each)

Standard accessories: H33/PT Handset

Other accessories: GRA-6 Remote Control Unit

Shipping: Unknown

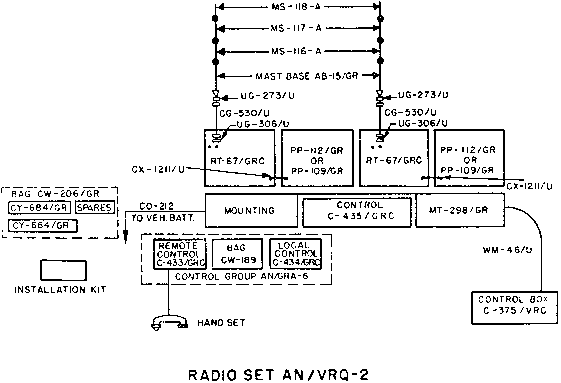

VRQ-2

Artillery, Vehicular, Radio, Special or Combination of Purposes

Spares (included in list above): Mast Sections MS-116-A (2 each), MS-117-A (2 each),  MS-118-A (2 each)

Standard accessories: H33/PT Handset

Other accessories: GRA-6 Remote Control Unit

Shipping: Unknown


VRQ-3

Infantry, Vehicular, Radio, Special or Combination of Purposes

Spares (included in list above): Mast Sections MS-117-A (2 each),  AB-24/GR (2 each)

Standard accessories: H33/PT Handset

Other accessories: GRA-6 Remote Control Unit

Shipping: Unknown

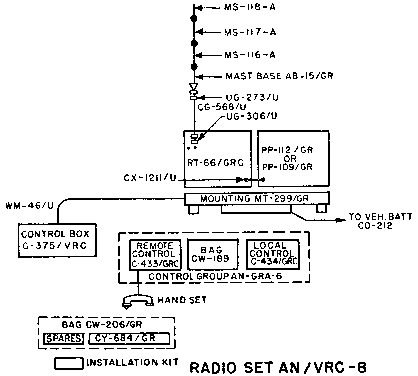

VRC-8

Armoured, Vehicular, Radio, Communications

Spares (included in list above): Mast Sections MS-116-A, MS-117-AMS-118-A

Standard accessories: H33/PT Handset

Other accessories: GRA-6 Remote Control Unit

Shipping: Unknown

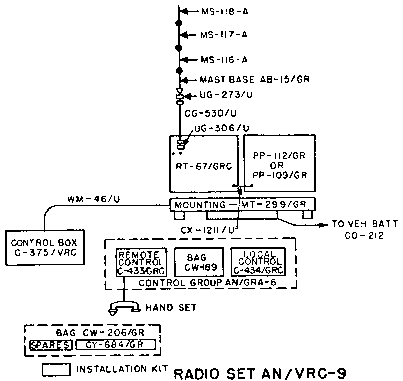

VRC-9

Artillery, Vehicular, Radio, Communications

Spares (included in list above): Mast Sections MS-116-A, MS-117-AMS-118-A

Standard accessories: H33/PT Handset

Other accessories: GRA-6 Remote Control Unit

Shipping: Unknown

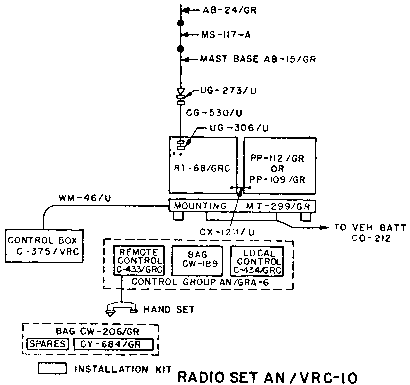

VRC-10

Infantry, Vehicular, Radio, Communications

Spares (included in list above): Mast Sections MS-117-AAB-24/GR

Standard accessories: H33/PT Handset

Other accessories: GRA-6 Remote Control Unit

Shipping: Unknown

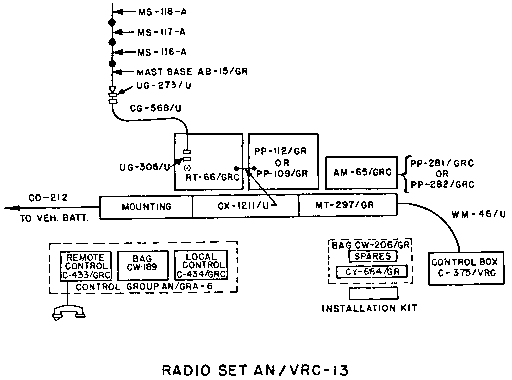

VRC-13

Armoured, Vehicular, Radio, Communications

Basic parts

Spares (included in list above): Mast Sections MS-116-A, MS-117-A, MS-118-A

Standard accessories: H33/PT Handset

Other accessories: GRA-6 Remote Control Unit

Shipping

Box 1. Dimensions: 49 x 33 x 29 centimetres. Weight: 52 kg. Contains: RT-66/GRC; PP-112/GRC or PP-109/GRC.
Box 2. Dimensions: 47 x 46 x 29 centimetres. Weight: 23 kg. Contains: AM-65/GRC; CW-206/GR; CX-1211/U; CY-684/GR; TM-11-291.
Box 3. Dimensions: 119 x 56 x 29 centimetres. Weight: 47 kg. Contains: C-375/VRC; MT-297/GR; UG-273/U; UG-306/U; WM-46/U; CG-568/U, Connector/Bondnut, MS-116-A (2); MS-117-A (2); MS-118-A (2); AB-15/GR; possibly GRA-6, possibly H33/PT.

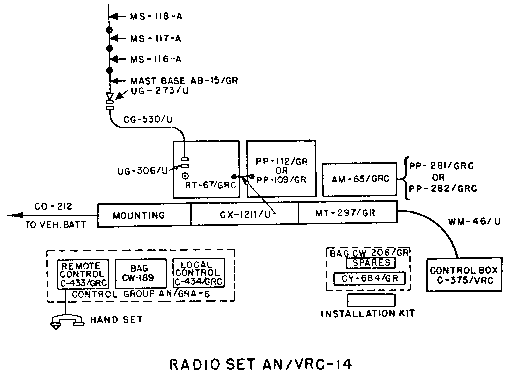

VRC-14

Artillery, Vehicular, Radio, Communications

Basic parts

Spares (included in list above): Mast Sections MS-116-A, MS-117-A, MS-118-A

Standard accessories: H33/PT Handset

Other accessories: GRA-6 Remote Control Unit

Shipping

Box 1. Dimensions: 49 x 33 x 29 centimetres. Weight: 52 kg. Contains: RT-67/GRC; PP-112/GRC or PP-109/GRC.
Box 2. Dimensions: 47 x 46 x 29 centimetres. Weight: 23 kg. Contains: AM-65/GRC; CW-206/GR; CX-1211/U; CY-684/GR; TM-11-291.
Box 3. Dimensions: 119 x 56 x 29 centimetres. Weight: 47 kg. Contains: C-375/VRC; MT-297/GR; UG-273/U; UG-306/U; WM-46/U; CG-530/U, Connector/Bondnut, MS-116-A (2); MS-117-A (2); MS-118-A (2); AB-15/GR; possibly GRA-6, possibly H33/PT

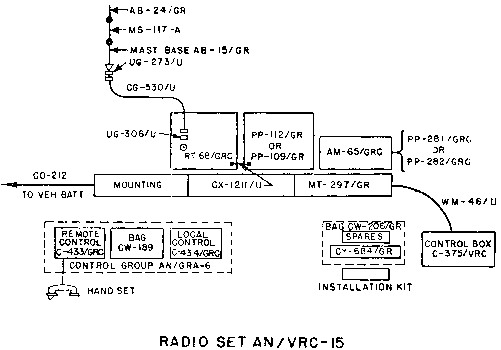

VRC-15

Infantry, Vehicular, Radio, Communications

Basic parts

Spares (included in list above): Mast Sections MS-117-A, AB-24/GR

Standard accessories: H33/PT Handset

Other accessories: GRA-6 Remote Control Unit

Shipping

Box 1: Dimensions: 49 x 33 x 29 centimetres. Weight: 52 kg. Contains: RT-68/GRC; PP-112/GRC or PP-109/GRC.
Box 2: Dimensions: 47 x 46 x 29 centimetres. Weight: 23 kg. Contains: AM-65/GRC; CW-206/GR; CX-1211/U; CY-684/GR; TM-11-291.
Box 3: Dimensions: 119 x 56 x 29 centimetres. Weight: 47 kg. Contains: C-375/VRC; MT-297/GR; UG-273/U; UG-306/U; WM-46/U; CG-530/U, Connector/Bondnut, MS-117-A (2); AB-24/GR (2); AB-15/GR; possibly GRA-6, possibly H33/PT.

VRC-16

Armoured, Vehicular, Radio, Communications

Spares (included in list above): Mast Sections MS-116-A, MS-117-A, MS-118-A

Standard accessories: H33/PT Handset

Other accessories: GRA-6 Remote Control Unit

Shipping: Unknown

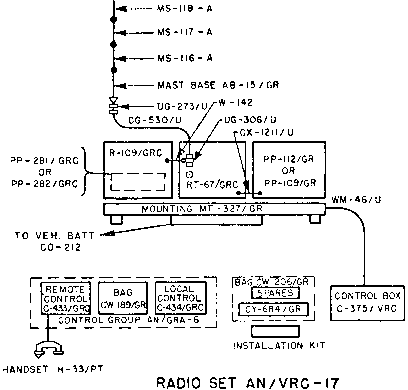

VRC-17

Artillery, Vehicular, Radio, Communications

Spares (included in list above): Mast Sections MS-116-A, MS-117-A, MS-118-A

Standard accessories: H33/PT Handset

Other accessories: GRA-6 Remote Control Unit

Shipping: Unknown

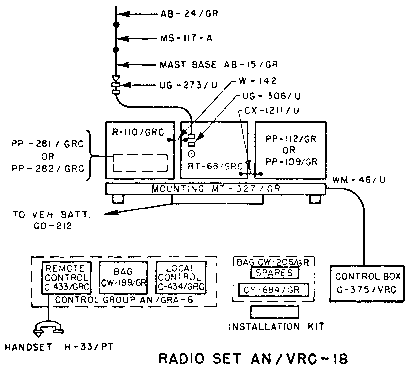

VRC-18

Infantry, Vehicular, Radio, Communications

Spares (included in list above): Mast Sections MS-117-A, AB-24/GR

Standard accessories: H33/PT Handset

Other accessories: GRA-6 Remote Control Unit

Shipping: Unknown

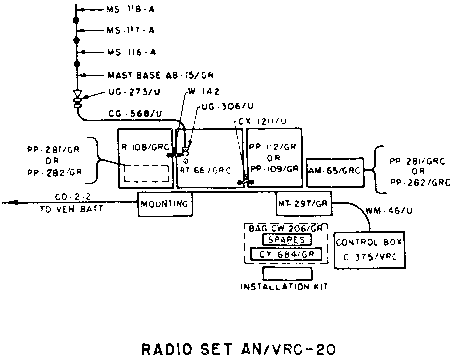

VRC-20

Armoured, Vehicular, Radio, Communication

Spares (included in list above): Mast Sections MS-116-A, MS-117-A, MS-118-A

Standard accessories: H33/PT Handset

Shipping: Unknown

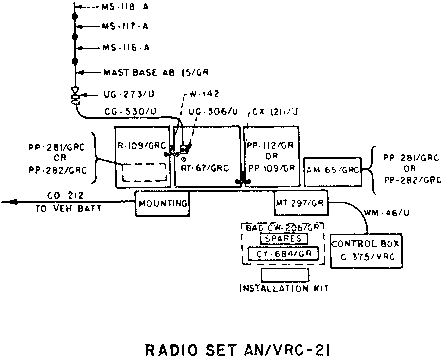

VRC-21

Artillery, Vehicular, Radio, Communication

Spares (included in list above): Mast Sections MS-116-A, MS-117-A, MS-118-A

Standard accessories: H33/PT Handset

Shipping: Unknown

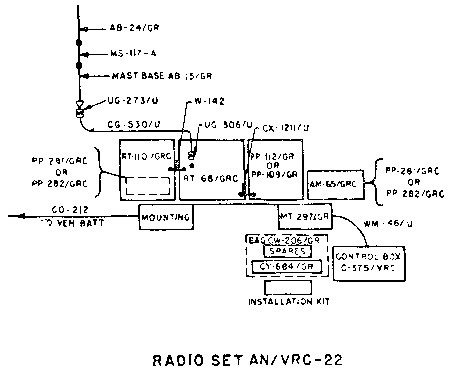

VRC-22

Infantry, Vehicular, Radio, Communication

Spares (included in list above): Mast Sections MS-117-A, AB-24/GR

Standard accessories: H33/PT Handset

Shipping: Unknown

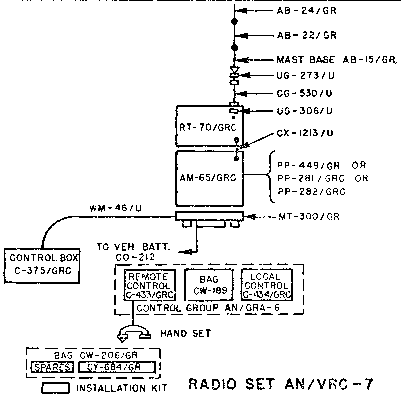

VRC-7

Vehicular, Radio, Communications

Spares (included in list above): Mast Sections AB-24/GR, AB-22/GR

Running spares Vibrator (1); Relay, Raytheon CK-118 (1); Ballast tube, 600 ma (1); Tubes 0B2 (2); 6AK6 (2); 3A5 (1); 3Q4 (4); 3B4 (1); 114 (2); 1S5 (1); 1U4 (4); 1R5 (2); 1AE4 (2); 12AU7 (3); Fuses (6)

Standard accessories: GRA-6 Remote Control Unit

Other accessories: H33/PT Handset

Shipping

Box 1. Dimensions: unknown. Weight: 39 lb. Contains: RT-70/GRC; AM-65/GRC; PP-281/GRC or PP-282/GRC  or PP-448/GRC.
Box 2. Dimensions: unknown. Weight: 96 lb. Contains: AB-15/GR; AB-22/GR (2); AB-24/GR (2); GRA-6UG-273/U; UG-306/U; CX-1213/U; CW-206/GR; CY-684/GR; TM-11-285.
Box 3. Dimensions: unknown. Weight: 29 lb. Contains: WM-46/U; C-375/VRC; MT-300/GR; CG-530/U, Connector/Bondnut

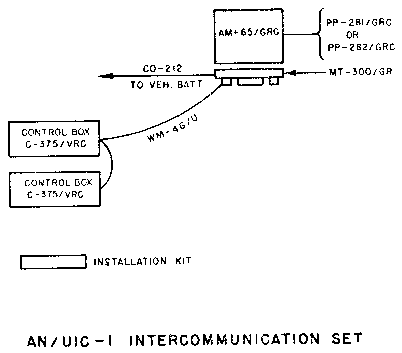

UIC-1

General, Utility, Interphone and PA, Communications

Spares (included in list above): None

Standard accessories: H33/PT Handset

Other accessories: Unknown

Shipping: Unknown

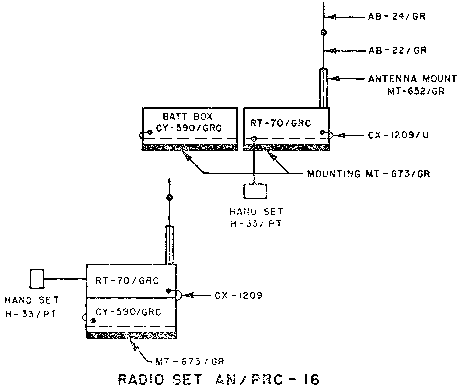

PRC-16

Portable, Radio, Communications

Spares (included in list above): Mast Sections AB-24/GR, AB-22/GR

Standard accessories: H33/PT Handset

Other accessories - Unknown

Shipping: Unknown

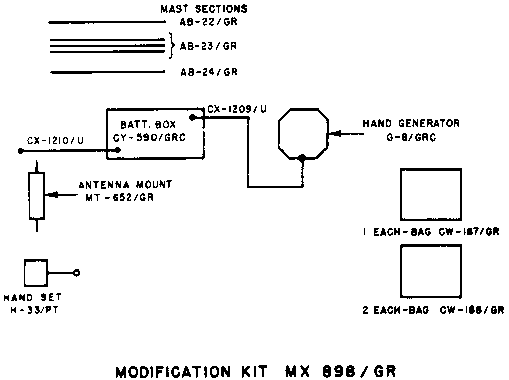

MX 898/GR

Modification Set

Comments: Most MX sets are meant to complete some radio set when building it into a particular vehicle. This one is different: it's meant to add to a built-in set in order to allow field use - outside of the vehicle. Hand-driven generator, battery box for receiving purposes without some private sitting en exercising on the generator, carrying bags, an antenna mount that will fit a small hole on the radio in order to set up an antenna without much trouble. I'd love to find a complete one: them battery boxes and carrying bags seem to be scarce.

Spares (included in list above): Mast Sections AB-24/GR, AB-23/GR (6 each), AB-22/GR

Standard accessories: H33/PT Handset

Other accessories - Unknown

Shipping: Unknown


Spare Parts

Units like Receiver Transmitters, Amplifiers, Receivers and Power Supplies came with their own set of spare parts like tubes, fuses, dial lamps and vibrators. These lists can be found with the description of those units, just follow the links. However, in most cases there would be more spare parts then could be carried in the Spare Parts Case and the manual would suggest what spare parts to keep in that case as running spares.
